Automatic Solar Panel Frame Machine with Steel Photovoltaic Bracket Gearbox Core Components Including Bearing and Motor

Description

The Suolan Automatic Solar Panel Frame Machine is a cutting-edge solar bracket panel roll forming machine designed for high-efficiency production of durable photovoltaic mounting systems. As a hot selling photovoltaic bracket solution, this advanced machinery integrates industrial-grade gearbox, bearing and motor core components to deliver precise, automated frame manufacturing. Perfect for solar panel frame manufacturing, it combines the reliability of glazed tile forming machine technology with specialized solar application features - creating an easy to operate building machine that maximizes your renewable energy production capabilities.

Introduction

Key Features:

✔ All-in-One Solar Solution - Complete photovoltaic bracket panel machine system
✔ Precision Gear Drive System - Industrial gearbox ensures ±0.2mm forming accuracy
✔ High-Speed Production - Outputs up to 18m/min for mass solar panel frame manufacturing
✔ Smart Thickness Control - Handles 1.0-3.0mm galvanized steel/aluminum
✔ Energy Saving Design - 30% less power than conventional economical tile making machines
✔ Modular Tooling - Quick-change for different solar bracket profiles
✔ IoT Ready - Optional smart monitoring system

Applications:

Solar Farm Construction - Mass production of photovoltaic mounting brackets
Renewable Energy Projects - On-site frame manufacturing capability
Metal Fabrication - Diversify from glazed tile to solar product lines
Export Manufacturing - Produce CE-certified solar frames for global markets

Technical Superiority:
• Special anti-corrosion treatment for outdoor applications
• Dual-purpose as structural purlin machine
• Meets UL2703 and TUV standards

Upgrade to Automated Solar Frame Production Today!

Overview

Video Description

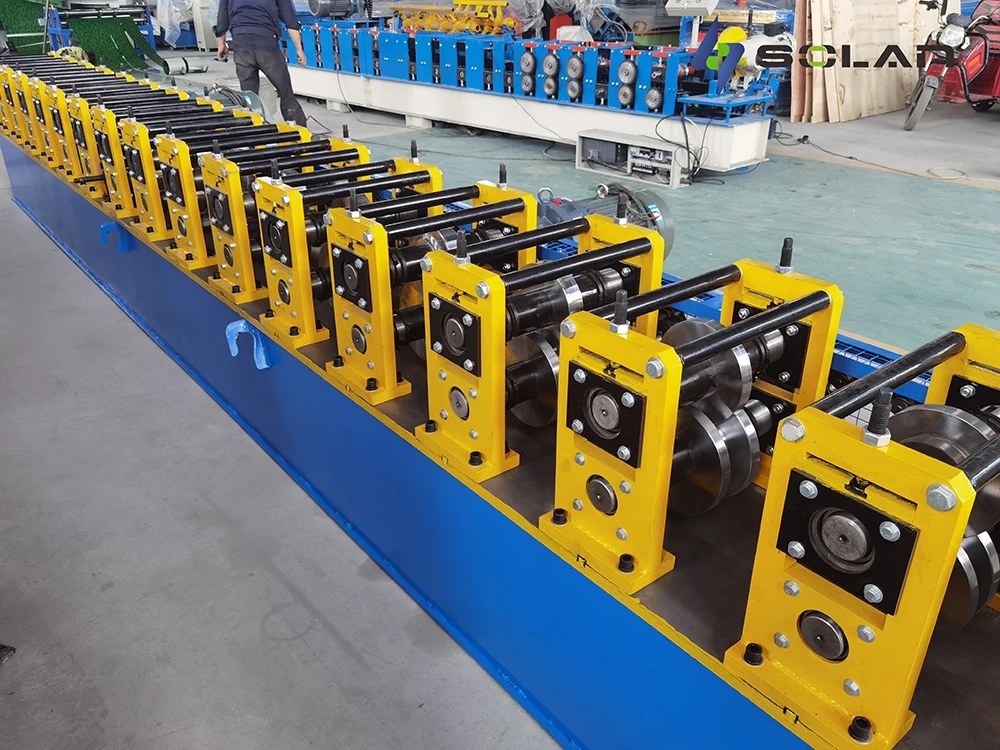

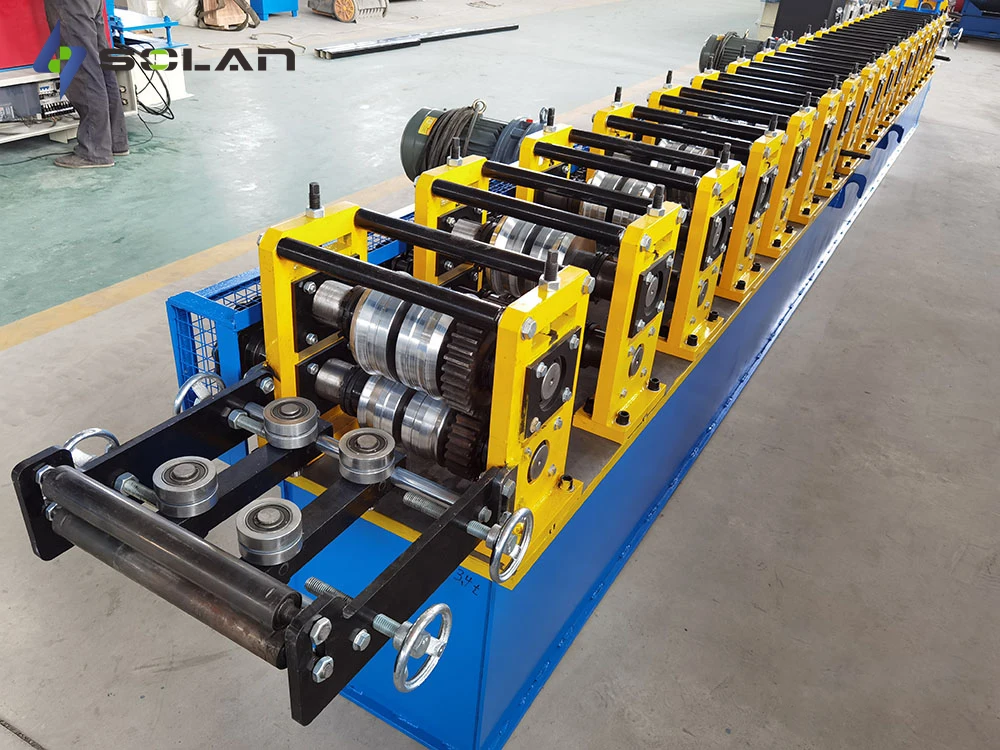

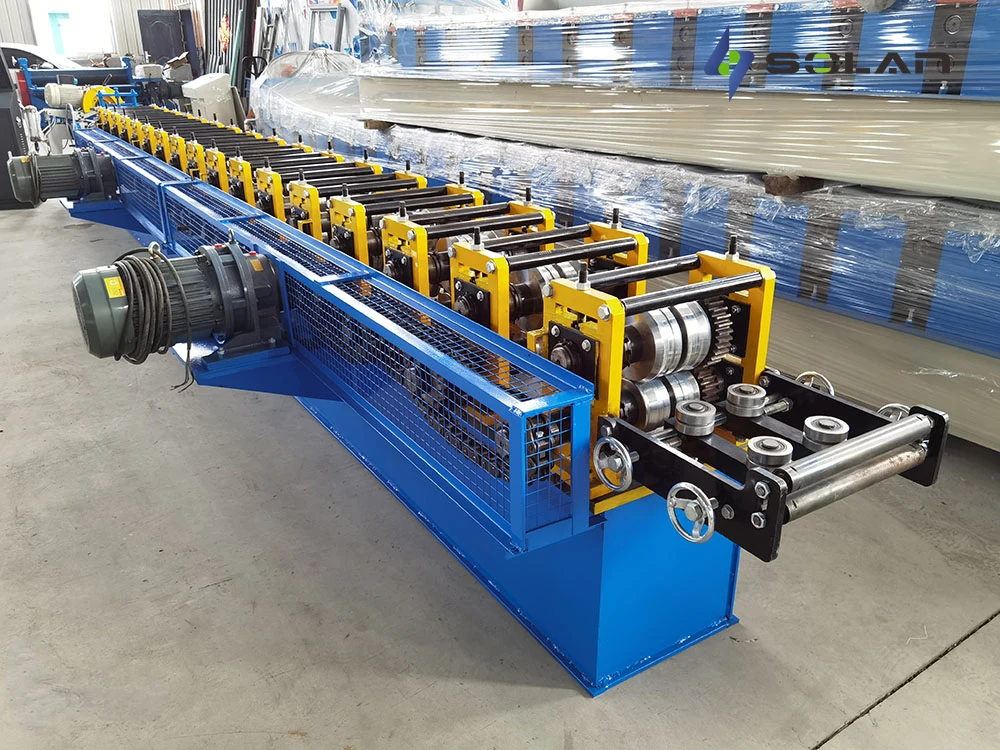

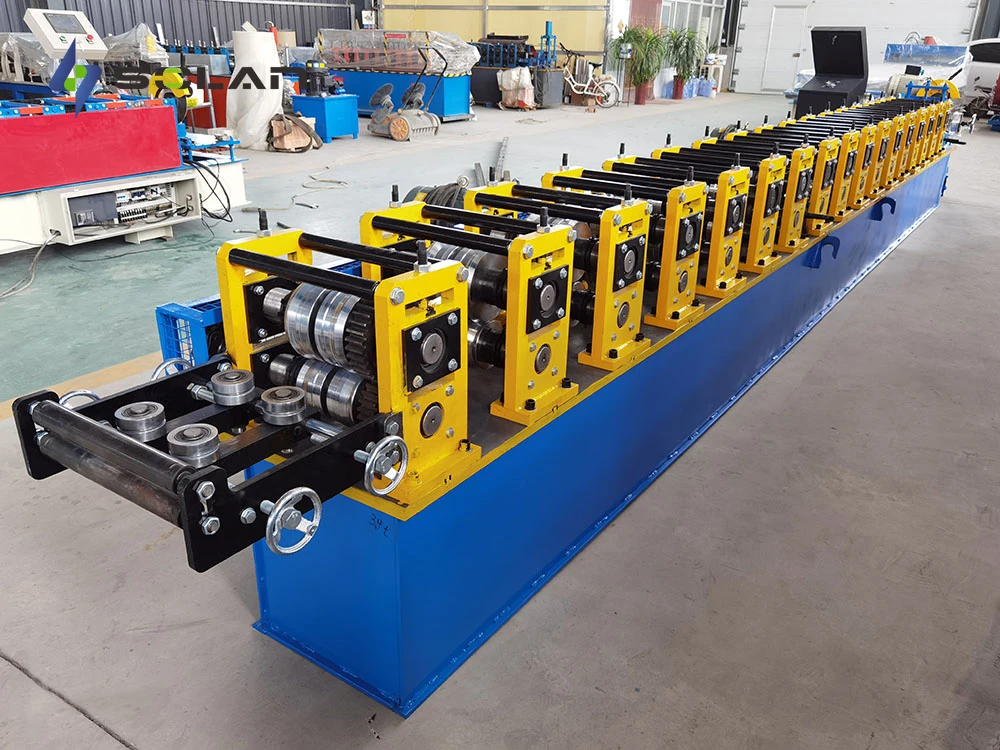

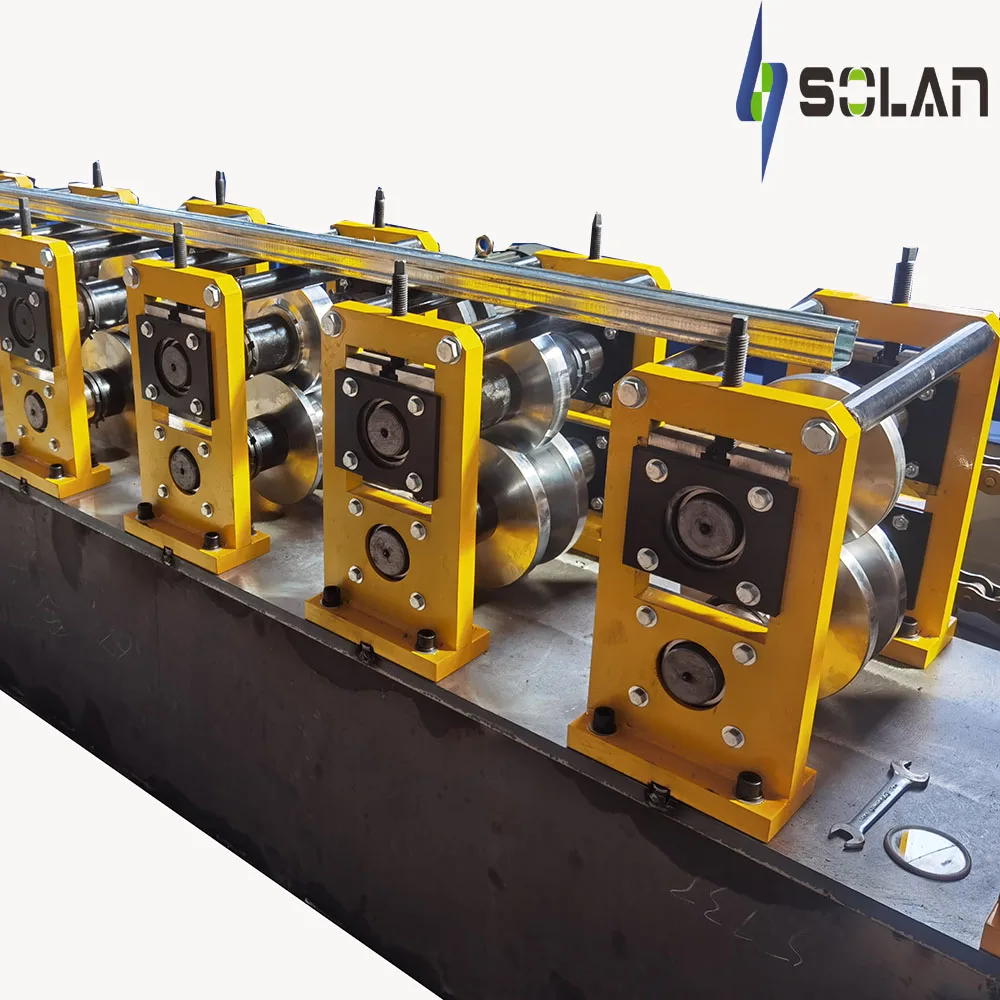

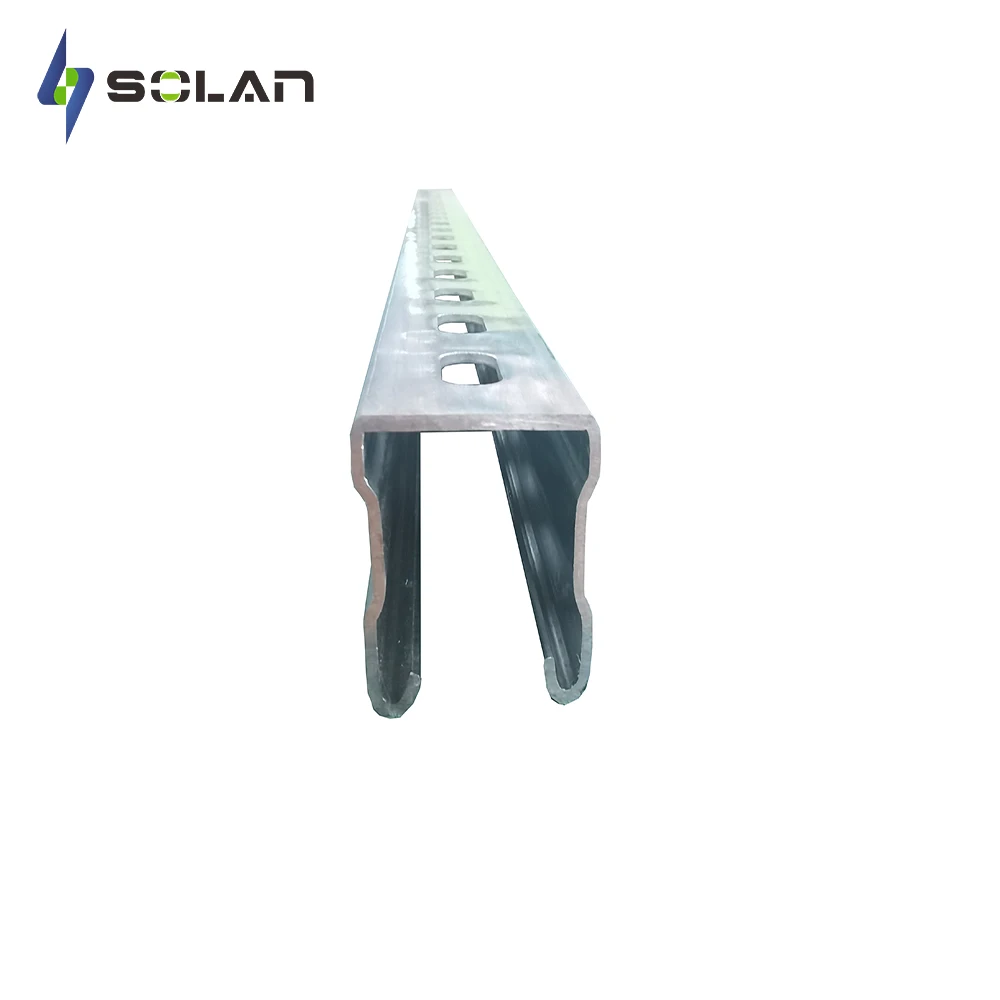

Solar Bracket Roll Forming Machine

product automatic solar panel frame machine with steel photovoltaic bracket gearbox core components including bearing and motor-0

product automatic solar panel frame machine with steel photovoltaic bracket gearbox core components including bearing and motor-1

product automatic solar panel frame machine with steel photovoltaic bracket gearbox core components including bearing and motor-2

product automatic solar panel frame machine with steel photovoltaic bracket gearbox core components including bearing and motor-3

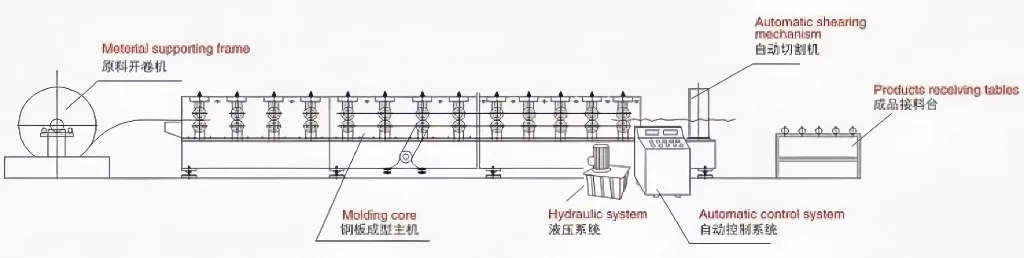

Processing Flow Chart

product automatic solar panel frame machine with steel photovoltaic bracket gearbox core components including bearing and motor-4

This roll forming line mainly consists of main frame, pump station, electric control panel and exit roller way etc.

Processing Material	GI, Steel strip
Input Width(mm)	according to the channel size you make
Formed Width(mm)	according to your need
Processing Thickness(mm)	max 2.0mm
Material of Rollers	Gcr15
Diameter of Shaft	Ф80mm
Production Speed	12---15m/min
Roller Driven	Decelerating Motor+Chain Transmission
Cutting Model	Hydraulic Profile Cutting
Length Measurement	Encoder
Control Style	PLC
Operation Model	Button + Touch Screen
Total Power	15+11kw
Voltage	380V 50HZ or at buyer's request

Company Profile

Cangzhou Solan Machinery Manufacturing Co., Ltd, is a manufacturer of roof/wall panel roll forming machine, CZ interchange purlin machine,decking floor machine, EPS/rock wool sandwich panel machine, shutter door and door frame machine, and building machine products with well-equipped testing and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building industry, living and another industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationship and mutual success!

product automatic solar panel frame machine with steel photovoltaic bracket gearbox core components including bearing and motor-5

product automatic solar panel frame machine with steel photovoltaic bracket gearbox core components including bearing and motor-6

FAQ

1.Can you be responsible for transport?

Yes, please tell us the destination port or address. we have rich experience in transport.
2.You are a trade company or factory?
We are a Manufacturer.
3. Why your price is higher than others?
As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic,accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem.
4. Do you have overseas engineers?
Yes, we not only provide overseas engineers but also provide technical training.
5. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
6.How to visit our company?
Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station, then we can pick up you to factory. Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station, then we can pick up you to factory.

product automatic solar panel frame machine with steel photovoltaic bracket gearbox core components including bearing and motor-7
