High Speed Customized Galvanized Tube Welded Square Tube Roll Forming Easy to Operate Pipe Making Machine Welded Square Tube

Description

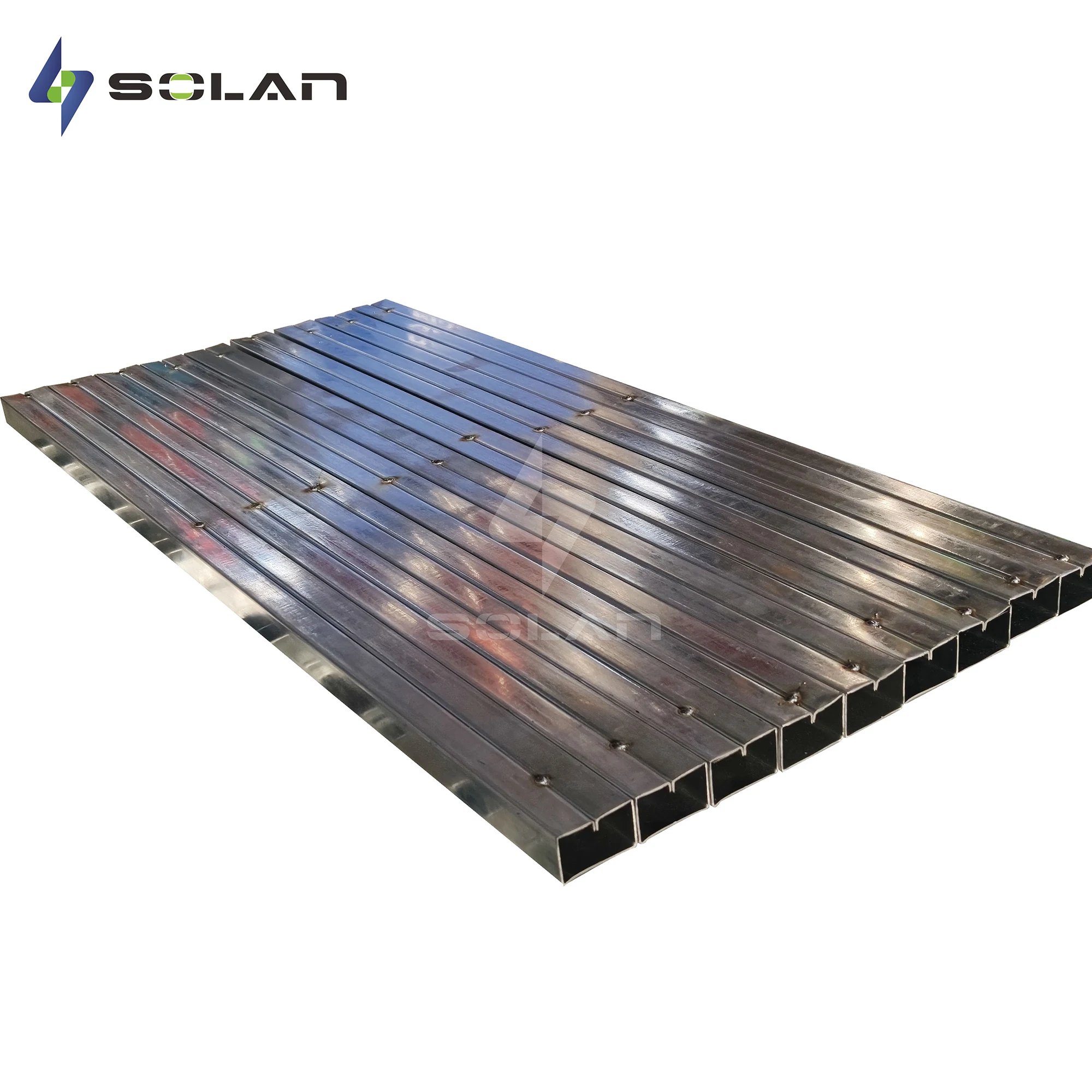

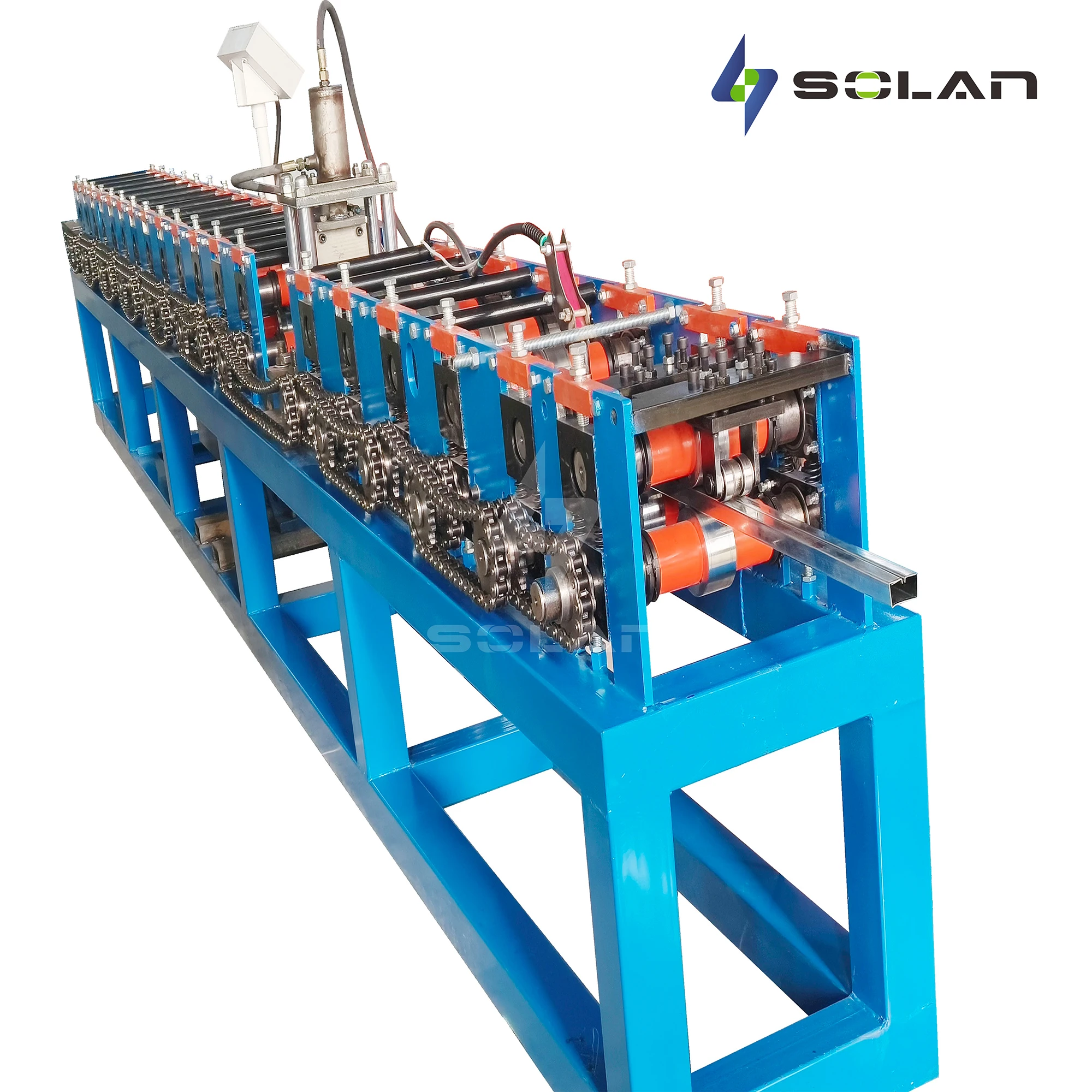

The High Speed Square Steel Tube Making Machine from Suolan represents the latest innovation in welded steel square pipe production. As our 2025 new arrival pipe making machine, this advanced welded square tube roll forming machine combines cutting-edge technology with user-friendly operation to deliver precision-formed galvanized square tubes at unmatched speeds. Our fully-automated system features intelligent PLC controls and high-frequency welding technology to produce custom-sized square steel tubes from 20×20mm to 150×150mm with wall thicknesses up to 3.0mm. The welded square tube roll forming machine maintains consistent quality while achieving production speeds up to 60m/min, making it ideal for high-volume manufacturing.

Introduction

Key Features

✔ Ultra-High Speed Production - Up to 60m/min forming and welding speed

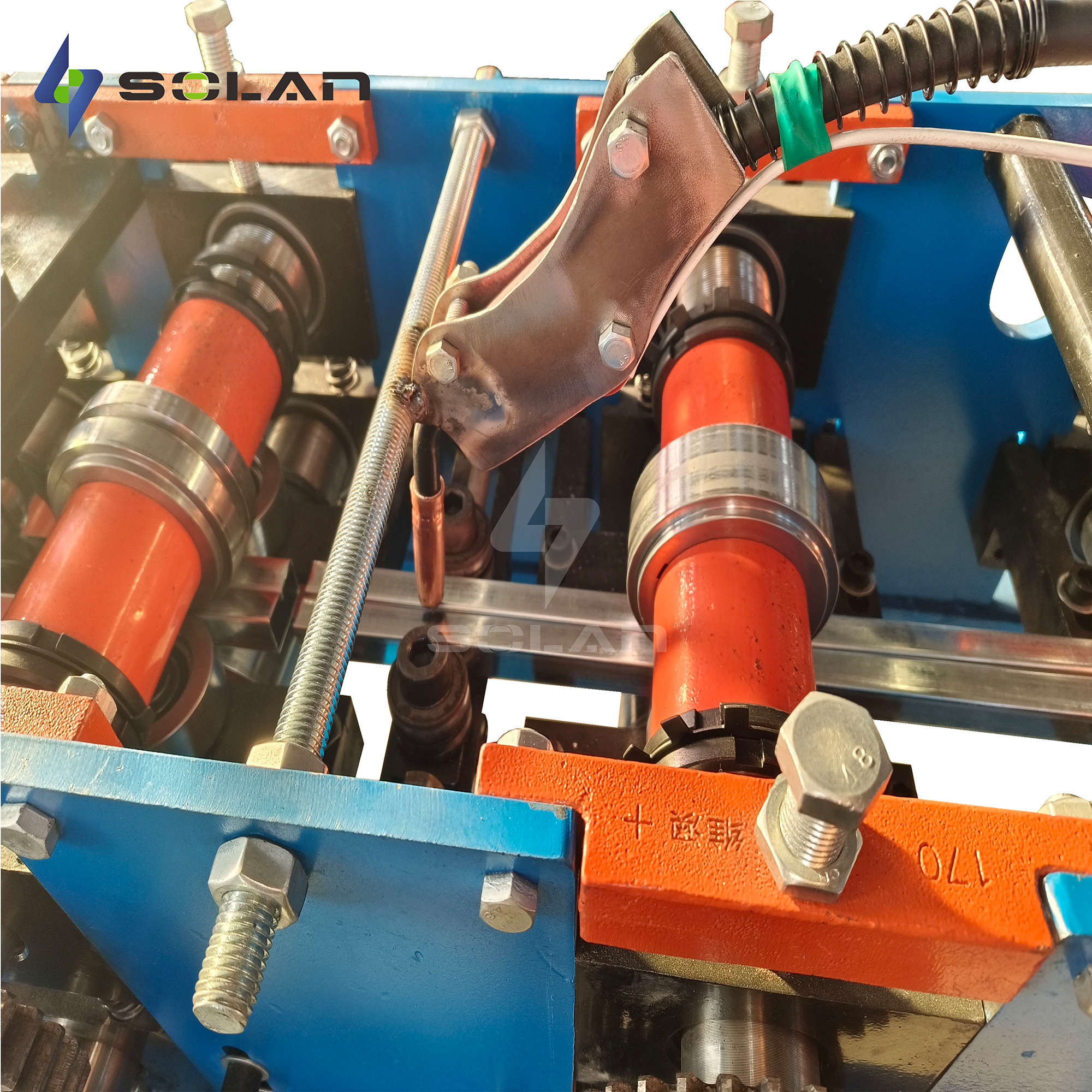

✔ Precision High-Frequency Welding - Ensures strong, seamless joints
✔ PLC Touchscreen Control - Simple operation with memory function
✔ Automatic Galvanizing Compatibility - Works with pre-galvanized coils
✔ Quick Changeover System - Adjustable rolls for multiple tube sizes
✔ Laser-Guided Alignment - Maintains perfect squareness (±0.1mm tolerance)
✔ Energy Efficient Design - 30% power savings vs conventional machines
✔ Durable Chromium Rollers - Hardened surfaces for extended lifespan

Applications

This high speed square steel tube making machine is perfect for manufacturing:

Structural square tubes for construction
Furniture and display rack components
Automotive and transportation frames
Scaffolding and support systems
HVAC ductwork and electrical conduits
Industrial storage systems

As the most advanced welded steel square pipe roll forming machine of 2025, our system delivers unmatched efficiency for metalworking factories, construction material suppliers, and industrial manufacturers worldwide.

Experience next-generation tube production with Suolan's innovative technology!

Product Description

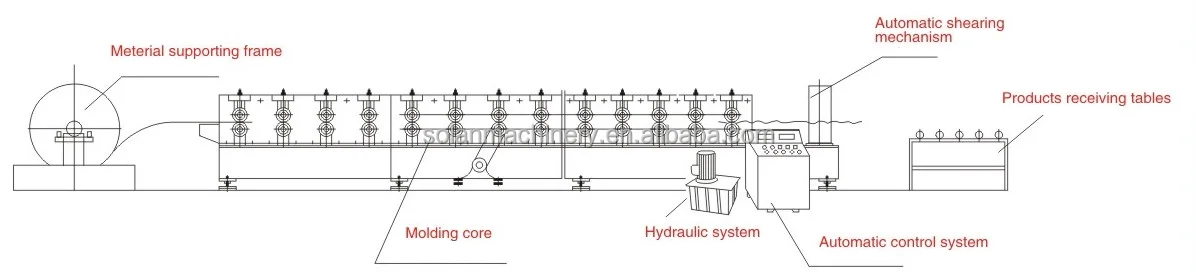

The production line adopts advanced through hole technology, PLC automatic control system, stable operation, easy operation and maintenance, and has reached the advanced level of the same industry in structure and accuracy. The equipment from the outlet to the outlet tube, the speed according to the specifications of the tube change and adjust.

product high speed customized galvanized tube welded square tube roll forming easy to operate pipe making machine welded square tube-0

product high speed customized galvanized tube welded square tube roll forming easy to operate pipe making machine welded square tube-1

product high speed customized galvanized tube welded square tube roll forming easy to operate pipe making machine welded square tube-2

Specification

item	value
Weight (KG)	7000
Core Components	Engine, motor, Bearing
Warranty	1.5 years
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Product name	Square Steel Tube Making Machine
After-sales Service Provided	Engineer Service
Material	Steel Structure
Feature	High Production Speed
Usage	Building Material Production
Color	Customised
Keywords	Pipe production line
Application	Building
Machine type	Automatic Control
Pipe diameter	as customer need

Product Details

product high speed customized galvanized tube welded square tube roll forming easy to operate pipe making machine welded square tube-3

product high speed customized galvanized tube welded square tube roll forming easy to operate pipe making machine welded square tube-4

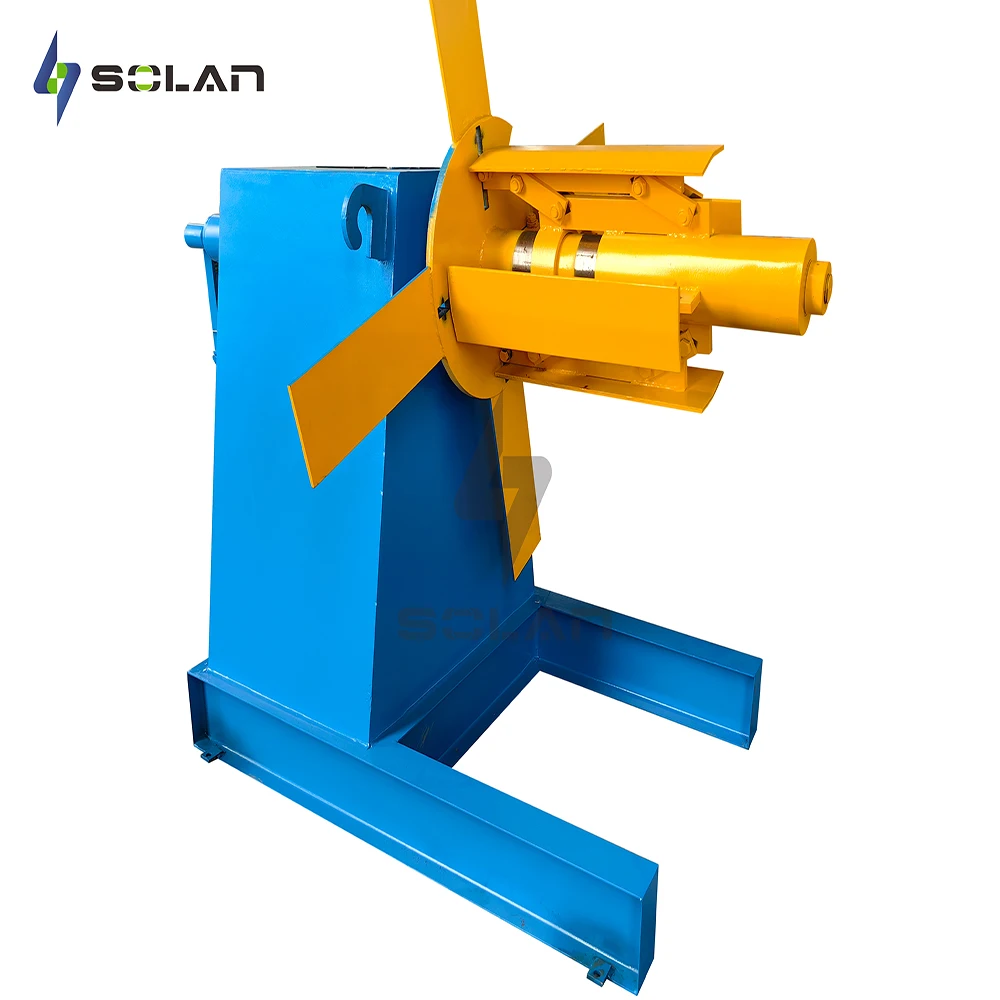

Manual decoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.

product high speed customized galvanized tube welded square tube roll forming easy to operate pipe making machine welded square tube-5

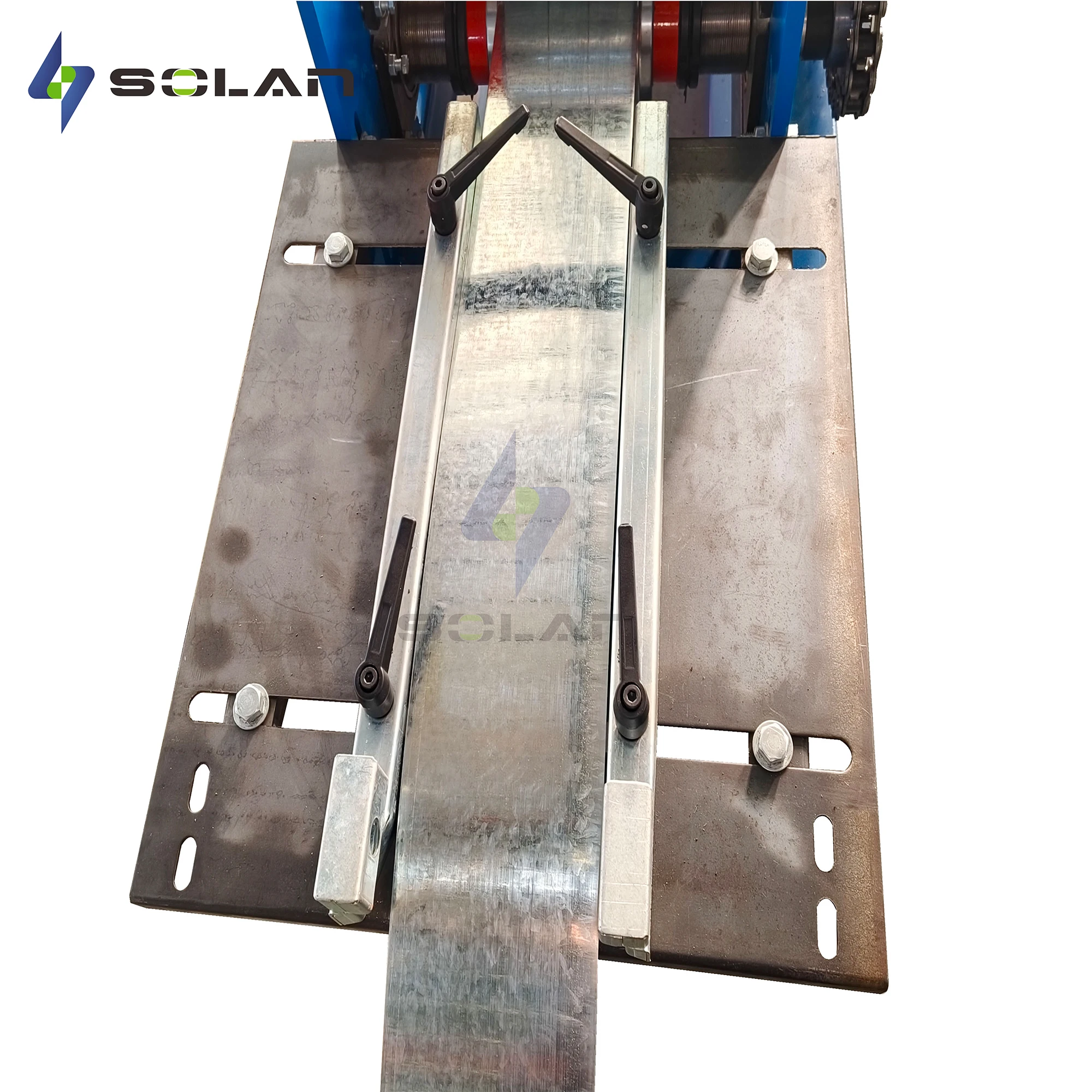

Feeding machine

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

product high speed customized galvanized tube welded square tube roll forming easy to operate pipe making machine welded square tube-6

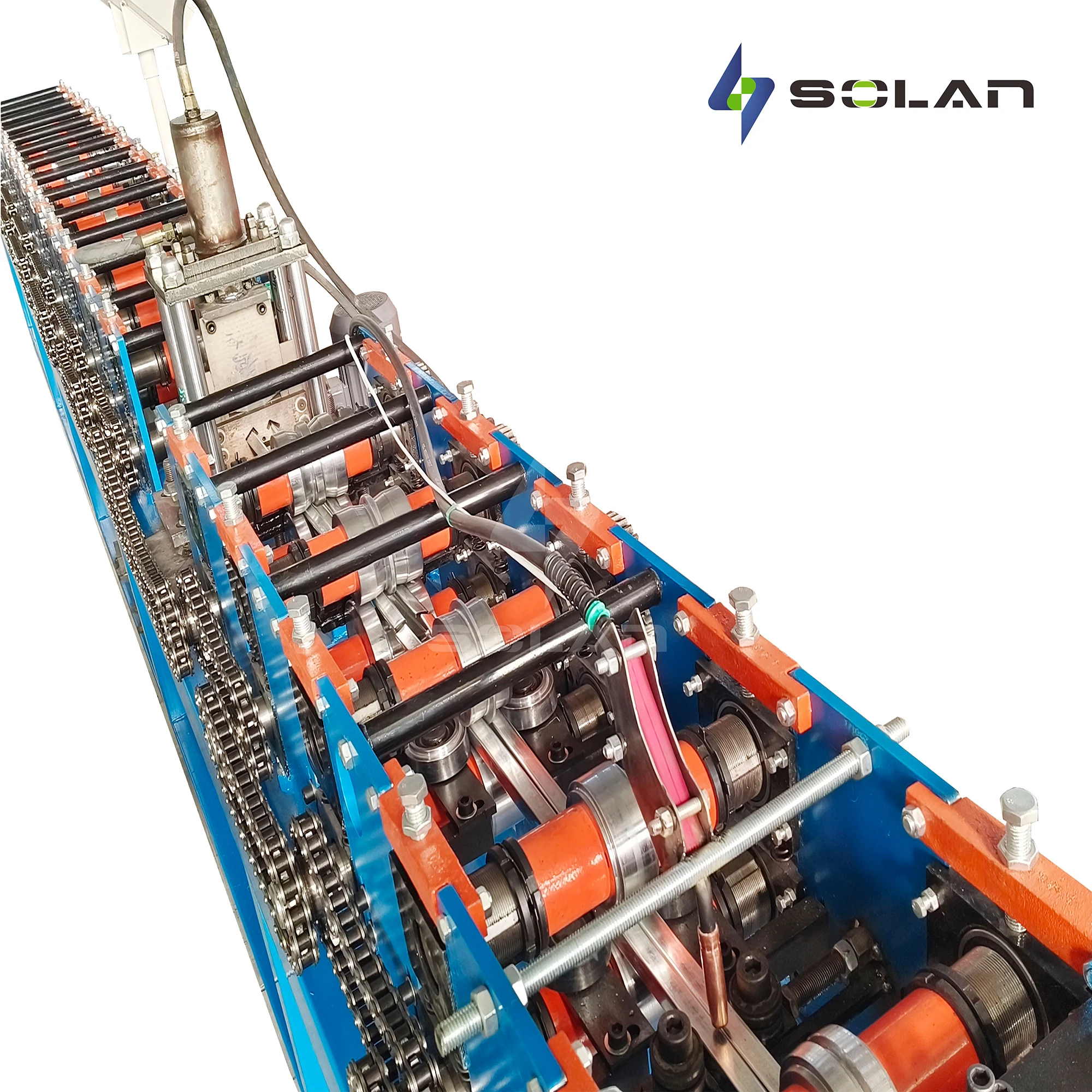

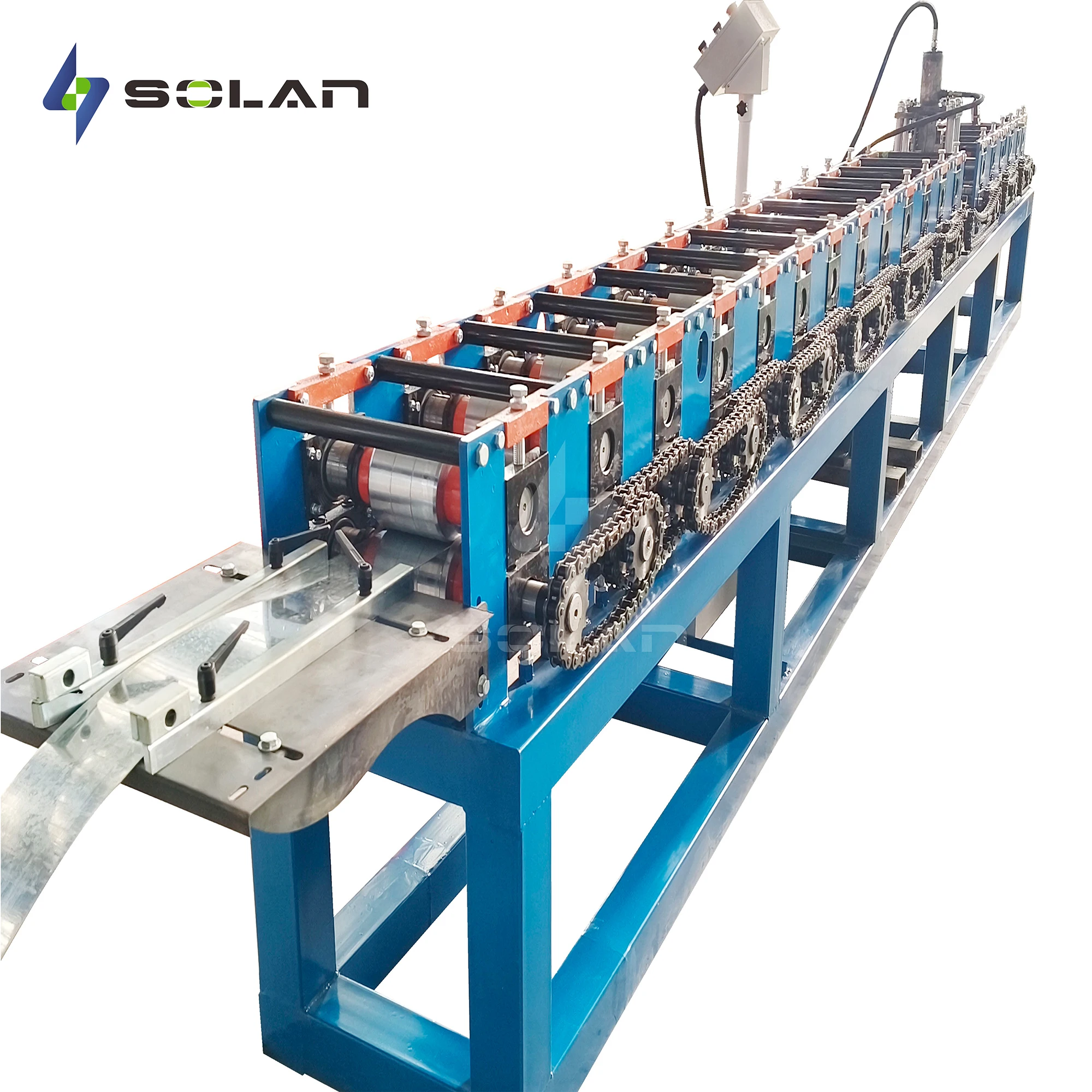

Forming machine

n order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and galvanizational treatment. The polished surface and the heat treatment towards
the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Material of rollers:45# steel, surface hard chromium plating.

Main power: 3kw（cycloidal planetary gear speed reducer）

product high speed customized galvanized tube welded square tube roll forming easy to operate pipe making machine welded square tube-7

Cutting machine

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12
Components:It contains one set of cutting tools, one hydraulic tank and one cutter machine.

product high speed customized galvanized tube welded square tube roll forming easy to operate pipe making machine welded square tube-8

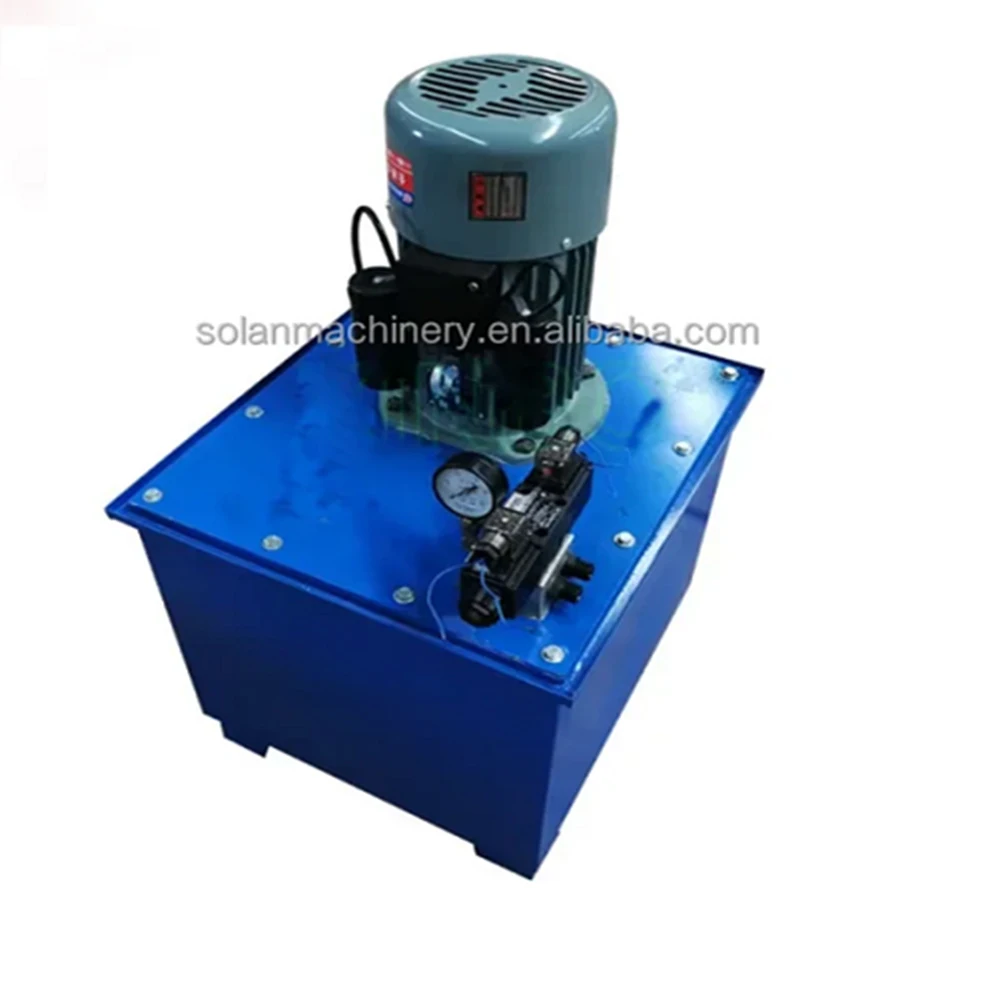

Hydraulic station

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

Hydraulic oil: 40#

product high speed customized galvanized tube welded square tube roll forming easy to operate pipe making machine welded square tube-9

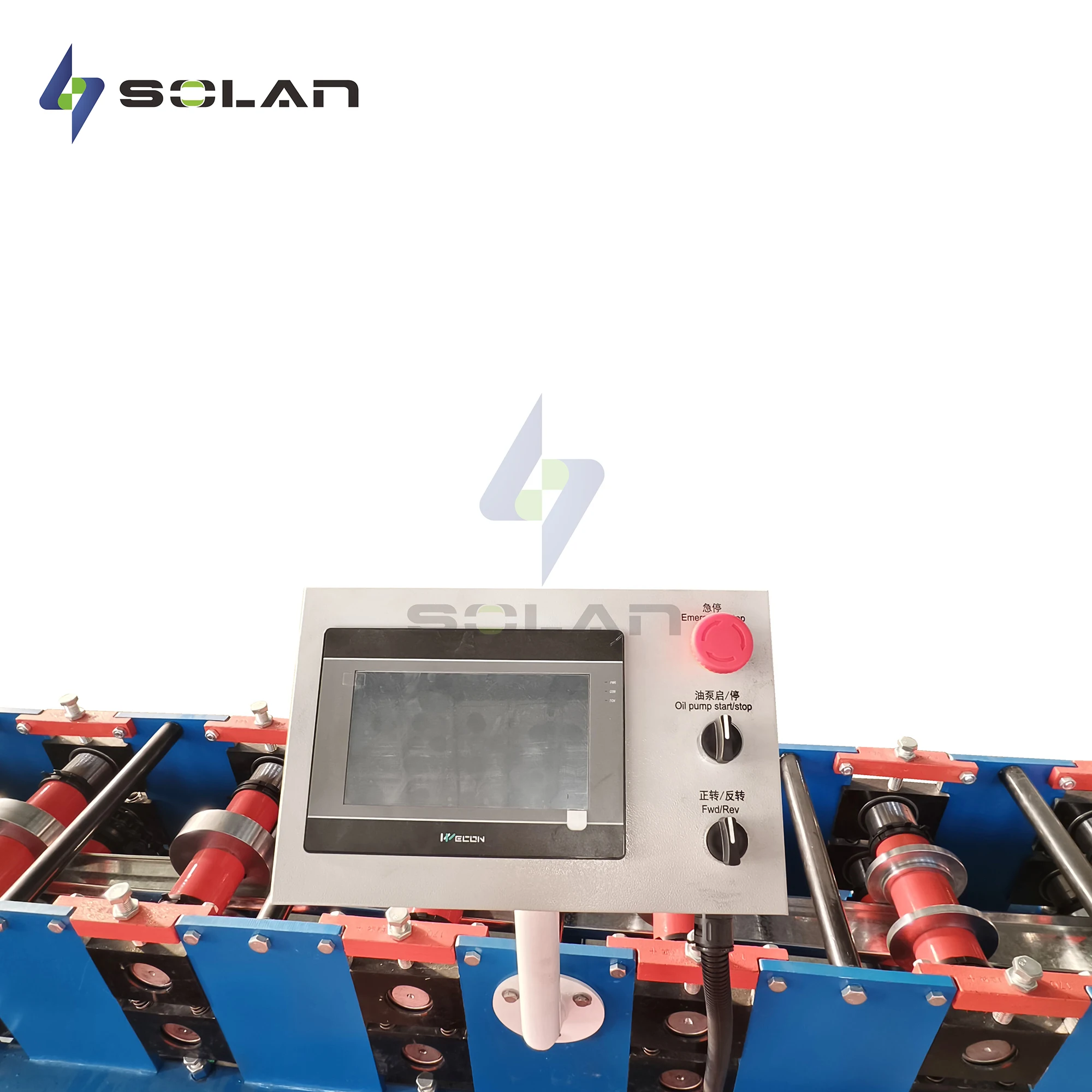

PLC control system

It adopts PLC to control. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes:
automatic and manual one. The system is easy to operate and use.

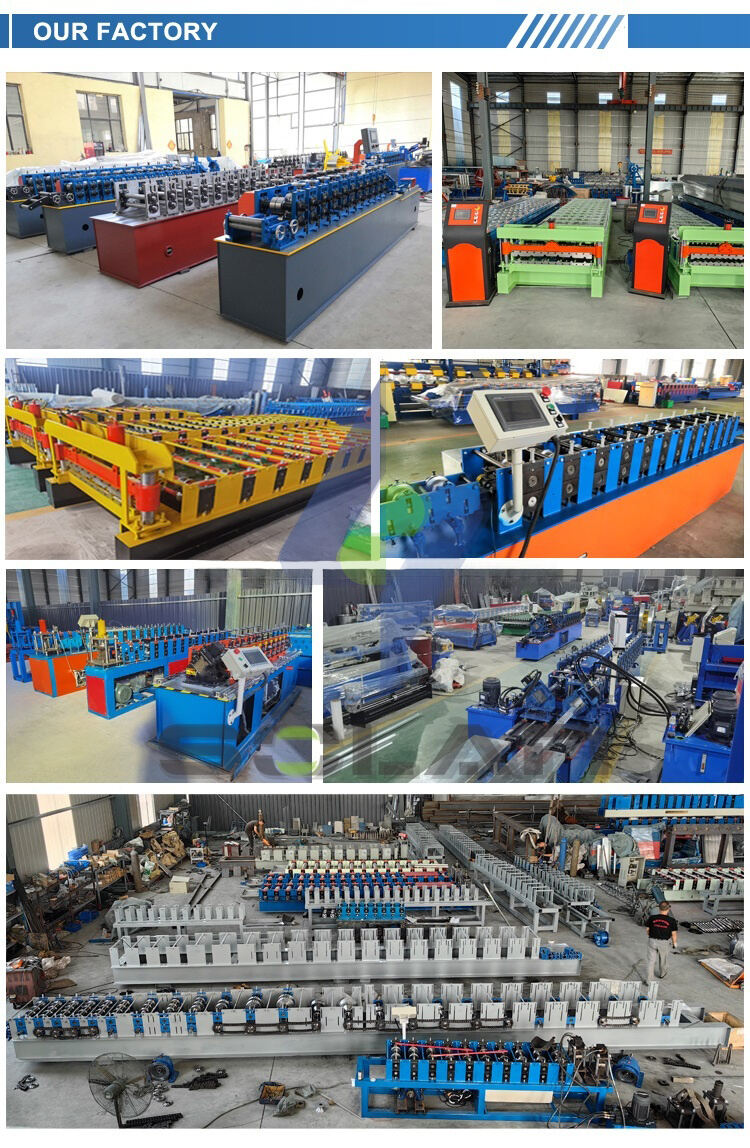

Company Profile

Cangzhou Solan Machinery Manufacturing Co., Ltd was established in 2014. We are a professinal manufacturer dedicated to design and manufacture of different types of roll forming machine, cold forming machine, and high-altitude tile making devices. With solid economic basis, perfect system of administration, high quality employee group, we create competitive advantage for our company. Our company has passed ISO9001 quality management system certification, European CE safety certification, North American CAS electrical certification. Our company is based on the principle of quality first, honesty and trustworthiness, sincerity and mutual benefits. We have won top reputation and have established long lasting business relationship customers here at home and abroad. For many years We have provided many customers with satisfactory equipment solutions. Our equipments have been exported to more than 100 countries around the world, and we have established long-term and stable cooperative relations with customers and won unanimous praises from customers. We have a large service network and our high coverage and efficiency service are approved by many firms and institutes. We are committed to making our company the largest and most professional company in roll forming machine industry. Cangzhou Solan Machinery Manufacturing Co., Ltd will offer you high quality machines and services with most professional spirits.

product high speed customized galvanized tube welded square tube roll forming easy to operate pipe making machine welded square tube-10

Our Advantages

product high speed customized galvanized tube welded square tube roll forming easy to operate pipe making machine welded square tube-11

Packing & Delivery

product high speed customized galvanized tube welded square tube roll forming easy to operate pipe making machine welded square tube-12

Bare covered, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.

FAQ

Q1: How long is the warranty?

A1: We guarantee a 18-month after-sale service. Any problem when using, call or mail us, we will advise on technically sound methods. If needed, we will provide free accessories.

Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.

Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.

Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.

Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram.

Q6: How about your delivery time?
A6: Generally, It will take about 40 days to send goods out. The specific delivery time depends on the items and the quantity of your order.
