Full Automatic Double Layer Corrugated Roof IBR Trapezoidal Roof Roll Forming Machine

Description
Full Automatic Double Layer Corrugated Roof IBR Trapezoidal Roof Roll Forming Machine Double layer tile pressing machine, using hydraulic technology, is the main product of our factory. It is characterized by automatic control of equipment, simple op...

Introduction

Full Automatic Double Layer Corrugated Roof IBR Trapezoidal Roof Roll Forming Machine factory
Full Automatic Double Layer Corrugated Roof IBR Trapezoidal Roof Roll Forming Machine
Double layer tile pressing machine, using hydraulic technology, is the main product of our factory. It is characterized by automatic control of equipment, simple operation, fast running speed, dual use of equipment, small floor area, and durability. It is widely used in color steel tile full steel structure factory frame, single face color steel plate steel structure factory, multi span steel structure factory, factory with wooden crane beam, villa style color steel plate house with multi span color steel plate ceiling, roof adding, large-span factory, and light steel structure shed.
Full Automatic Double Layer Corrugated Roof IBR Trapezoidal Roof Roll Forming Machine details
Full Automatic Double Layer Corrugated Roof IBR Trapezoidal Roof Roll Forming Machine factory
Full Automatic Double Layer Corrugated Roof IBR Trapezoidal Roof Roll Forming Machine details
Full Automatic Double Layer Corrugated Roof IBR Trapezoidal Roof Roll Forming Machine manufacture
Full Automatic Double Layer Corrugated Roof IBR Trapezoidal Roof Roll Forming Machine manufacture
Full Automatic Double Layer Corrugated Roof IBR Trapezoidal Roof Roll Forming Machine supplier
Specification
No.
Item
1
Processing Material
PPGI,GI,Aluminium
2
Input Width(mm)
1200
3
Formed Width(mm)
1000
4
Processing Thickness(mm)
0.28--0.8
5
Material of Rollers
45# steel,with heat treatment
6
Diameter of Shaft
Ф70mm
7
Production Speed
12-15m/min
8
Roller Driven
Decelerating Motor+Chain Transmission
9
Cutting Model
Hydraulic Profile Cutting
10
Length Measurement
Encoder
11
Control Style
PLC
Details Images
product full automatic double layer corrugated roof ibr trapezoidal roof roll forming machine-0

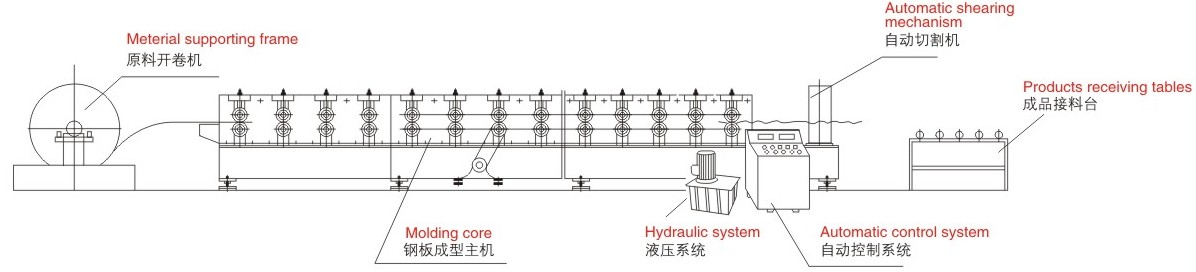

Manual Decoiler---Feeding Table ---Roll Forming Machine---Automatic Shearing Mechanism---Computer Control Cabinet---Run-out Tables
Full Automatic Double Layer Corrugated Roof IBR Trapezoidal Roof Roll Forming Machine manufacture
product full automatic double layer corrugated roof ibr trapezoidal roof roll forming machine-1
